SP4010 Datasheet - Littelfuse

SP4010 Diode Array

The SP4010 integrates 2 channels of ultra low capacitance asymmetrical protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust components can safely absorb repetitive ESD strikes above the maximum contact level specified in the IEC 61000-4-2 i.
TVS Diode Arrays (SPA®®Diodes) Low Capacitance ESD Protection - SP430102 Series SP4010 0.48pF Diode Array RoHS Pb GREEN 4 56 Pins 6, 7, 9, 10 are not internally connected but should be connected to the trace. 678 9 10 321 SPP3i0n1o2-u0t3UTG 543 21 SP3012-04UTG (AEC-Q101 Qualified) 65 4 8 14 71 SP3012-06UTG (AEC-Q101 Qualified) Pins 1, 2, 3, 4, 5, 6, 7 are not internally connected but should be connected to the opposite pin with the PCB trace. 12 3 SP3012-04HTG(AEC-Q101 Q.

SP4010 Features

* ESD, IEC 61000-4-2, ±30kV contact, ±30kV air

* EFT, IEC 61000-4-4, 40A (tP=5/50ns)

* Lightning, IEC 610004-5 2nd edition, 23A (tP=8/20μs)

* Low capacitance of 0.48pF @0V, 1MHz (TYP) per I/O

* Low leakage current of 0.2μA (MAX) at 10V

* AEC-Q10

SP4010 Datasheet (969.19 KB)

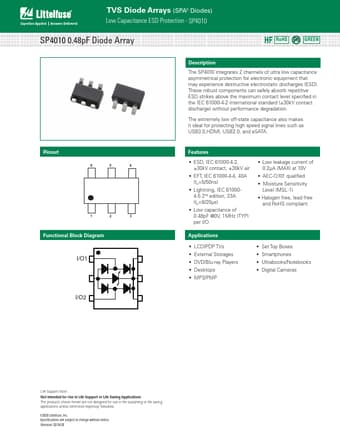

Preview of SP4010 PDF
SP4010 Datasheet Preview Page 2 SP4010 Datasheet Preview Page 3

Datasheet Details

Part number:

SP4010

Manufacturer:

Littelfuse ↗

File Size:

969.19 KB

Description:

Diode array.
