SP4020 Datasheet - Littelfuse

TVS Diode Arrays

SP4020 Features

* ESD, IEC 61000-4-2, ±30kV contact, ±30kV air

* EFT, IEC 61000-4-4, 40A (5/50ns)

* Lightning, IEC 61000-4-5, 30A (tP=8/20μs)

* Low capacitance of 2.5pF (@ VR=0V)

* Low leakage current of 0.1μA at 3.3V

* Unidirectional and Bidirectional configuration

SP4020 General Description

The SP4020 devices integrate low capacitance steering diodes with one or two zener diodes for unidirectional or bidirectional protection, respectively, to protect against ESD and lightning induced surge events. These devices can safely absorb up to 30A per IEC 61000-4-5 (tp=8/20μs) without performan.

SP4020 Datasheet (315.96 KB)

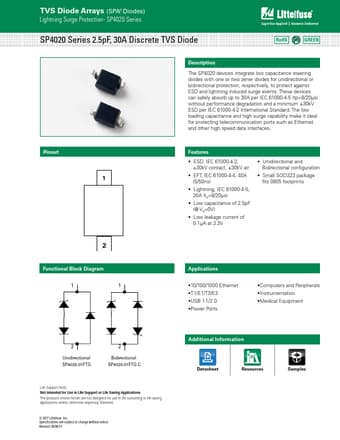

Preview of SP4020 PDF

Datasheet Details

Part number:

SP4020

Manufacturer:

Littelfuse ↗

File Size:

315.96 KB

Description:

Tvs diode arrays.
SP4020 TVS Diode Arrays (SPA® Diodes) Lightning Surge Protection- SP4020 Series SP4020 Series 2.5pF, 30A Discrete TVS Diode RoHS Pb GREEN Descripti.
