SP4022 Datasheet - Littelfuse

15A Discrete TVS Diode

SP4022 Features

* ESD, IEC 61000-4-2, ±30kV contact, ±30kV air

* EFT, IEC 61000-4-4, 40A (5/50ns)

* Lightning, 15A (8/20μs as defined in IEC 61000-4-5 2nd edition)

* Low capacitance of 1.3pF (@ VR=0V)

* Low leakage current

* Unidirectional and Bidirectional configura

SP4022 General Description

The SP4022 series integrate low capacitance steering diodes with one or two avalanche breakdown diodes for unidirectional or bidirectional protection, respectively, to protect against ESD and lightning induced surge events. These devices can safely absorb up to 15A per IEC 6d1e0g0ra0d-4at-5ion2nad n.

SP4022 Datasheet (692.30 KB)

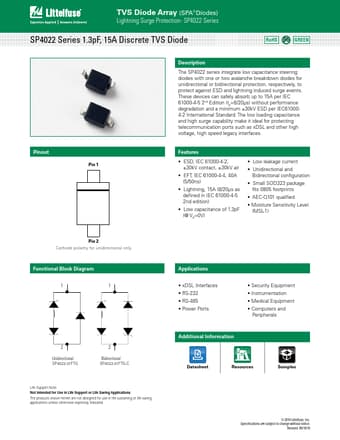

Preview of SP4022 PDF

Datasheet Details

Part number:

SP4022

Manufacturer:

Littelfuse ↗

File Size:

692.30 KB

Description:

15a discrete tvs diode.
TVS Diode Array (SPA®Diodes) Lightning Surge Protection- SP4022 Series SP4022 Series 1.3pF, 15A Discrete TVS Diode RoHS Pb GREEN Pinout Pin 1 Desc.
