SP4042 - 3.3V Diode Array

Product Overview

Littelfuse

Datasheet Details

Part number	SP4042
Manufacturer	Littelfuse
File Size	1.50 MB
Description	3.3V Diode Array
Datasheet	SP4042 Datasheet

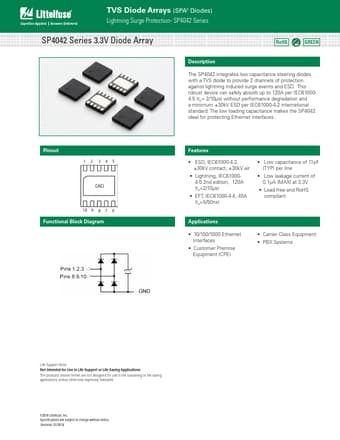

Additional preview pages of the SP4042 datasheet.

Product details

Description

The SP4042 integrates low capacitance steering diodes with a TVS diode to provide 2 channels of protection against lightning induced surge events and ESD.This robust device can safely absorb up to 120A per IEC61000- 4a-m5 i(ntPi=mu2m/10±μ3s0) kwVitEhoSuDt performance degradation and per IEC61000-4-2 international standard.The low loading capacitance makes the SP4042 ideal for protecting Ethernet interfaces.Pinout 12 345 GND 10 9 8 7 6 Functional Block Diagram

Features

ESD, IEC61000-4-2, ±30kV contact, ±30kV air.
Lightning, IEC610004-5 2nd edition, 120A (tP=2/10μs).
EFT, IEC61000-4-4, 40A (tP=5/50ns).
Low capacitance of 11pF (TYP) per line.
Low leakage current of 0.1μA (MAX) at 3.3V.
L ead-free and RoHS compliant.
