SZ1SMB70AT3G - TVS Diodes

This page provides the datasheet information for the SZ1SMB70AT3G, a member of the SZ1SMB5.0AT3G TVS Diodes family.

Datasheet Summary

Description

The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

They have excellent clamping and high surge capability, as well as fast response time.

Features

  • & Benefits.
  • Zener Transient Overvoltage Suppressors.
  • Working Peak Reverse Voltage Range.
  • 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional.
  • Standard Avalanche Breakdown Voltage Range.
  • 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-directional.
  • Peak Power.
  • 600 W @ 1.0 ms.
  • ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
  • ESD Rating of Class 3 (> 16 kV) per Human Body M.

📥 Download Datasheet

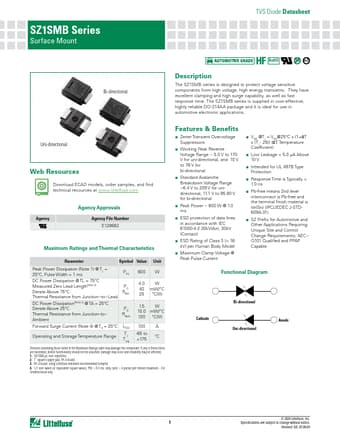

Datasheet preview – SZ1SMB70AT3G

Datasheet Details

Part number SZ1SMB70AT3G
Manufacturer Littelfuse
File Size 823.74 KB
Description TVS Diodes
Datasheet download datasheet SZ1SMB70AT3G Datasheet
Additional preview pages of the SZ1SMB70AT3G datasheet.

📁 Similar Datasheet

Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
SZ1SMB Series Surface Mount TVS Diode Datasheet RoHS Pb e3 Bi-directional Description The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping and high surge capability, as well as fast response time. The SZ1SMB series is supplied in cost-effective, highly reliable DO-214AA package and it is ideal for use in automotive electronic applications. Uni-directional Web Resources Download ECAD models, order samples, and find technical recources at www.littelfuse.
