SZ1SMC70AT3G - TVS Diodes

This page provides the datasheet information for the SZ1SMC70AT3G, a member of the SZ1SMC5.0AT3G TVS Diodes family.

Datasheet Summary

Description

The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients.

They have excellent clamping capability, high surge capability, low zener impedance and fast response time.

Features

  • & Benefits.
  • Zener Transient Overvoltage Suppressors.
  • Working Peak Reverse Voltage Range.
  • 5.0 V to 170 V.
  • Standard Zener Breakdown Voltage Range.
  • 6.4 V to 209 V.
  • Peak Power.
  • 1500 W@1 ms.
  • ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
  • ESD Rating of Class 3 (> 16 KV) per Human Body Model.
  • Maximum Clamp Voltage @ Peak Pulse Current.
  • Low Leakage < 5 µA Above 10 V.
  • VBR @TJ = VBR@25°C x (1.

📥 Download Datasheet

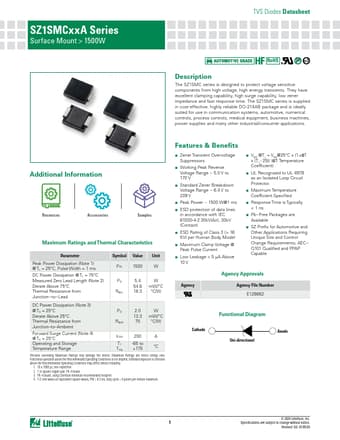

Datasheet preview – SZ1SMC70AT3G

Datasheet Details

Part number SZ1SMC70AT3G
Manufacturer Littelfuse
File Size 597.46 KB
Description TVS Diodes
Datasheet download datasheet SZ1SMC70AT3G Datasheet
Additional preview pages of the SZ1SMC70AT3G datasheet.

📁 Similar Datasheet

Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
SZ1SMCxxA Series Surface Mount > 1500W TVS Diodes Datasheet RoHS Pb e3 Description The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1SMC series is supplied in cost-effective, highly reliable DO-214AB package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Published: |
