SZNS6A15AFT3G Datasheet, Diodes, Littelfuse

SZNS6A15AFT3G Features

• Diodes
• Peak Reverse Working Voltage Range
• 5 V to 64 V
• Peak Pulse Power of 500 W (10 x 1000 sec)
• ESD Rating of Class 3 (>16 kV) per Human Body Model

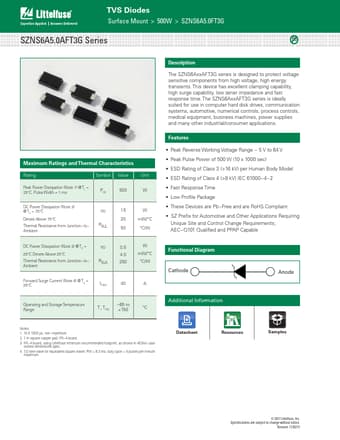

PDF File Details

Part number:

SZNS6A15AFT3G

Manufacturer:

Littelfuse ↗

File Size:

333.17kb

Download:

📄 Datasheet

Description:

Tvs diodes. The SZNS6AxxAFT3G series is designed to protect voltage sensitive components from high voltage, high energy transients. This device h

SZNS6A15AFT3G Application

• Applications Features
• Peak Reverse Working Voltage Range
• 5 V to 64 V
• Peak Pulse Power of 500 W (10 x 1000 sec)
<
