SZP6SMB39AT3G

TVS Diodes

SZP6SMB39AT3G Features

* Working Peak Reverse Voltage Range

* 5.8 to 171 V (for Unidirectional), 9.4 to 70.1 V (for Bi-directional)

* Standard Breakdown Voltage Range

* 6.8 to 200 V (for Uni-directional) , 11 to 91 V (for Bidirectional)

* Peak Power

* 600 W @ 1 ms

SZP6SMB39AT3G General Description

The SZP6SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low breakdown impedance and fast response time. The SZP6SMB series is supplied in the Littelfuse exclusive, cost-effective.

SZP6SMB39AT3G Datasheet (669.93 KB)

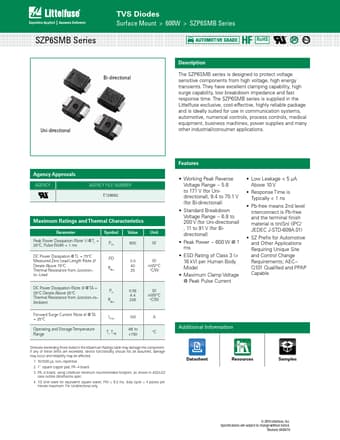

Preview of SZP6SMB39AT3G PDF

Datasheet Details

Part number:

SZP6SMB39AT3G

Manufacturer:

Littelfuse ↗

File Size:

669.93 KB

Description:

Tvs diodes.
