SZP6SMB6.8AT3G - TVS Diodes

Littelfuse

The SZP6SMB6.8AT3G by Littelfuse is a TVS Diodes. Below is the official datasheet preview.

📥 Download Datasheet

SZP6SMB6.8AT3G TVS Diodes by Littelfuse - Datasheet Preview — Official preview page of the SZP6SMB6.8AT3G TVS Diodes datasheet (Littelfuse).

Datasheet Details

Part number	SZP6SMB6.8AT3G
Manufacturer	Littelfuse
File Size	669.93 KB
Description	TVS Diodes
Datasheet	SZP6SMB6.8AT3G-Littelfuse.pdf

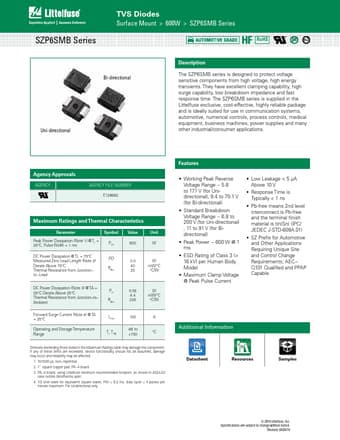

Additional preview pages of the SZP6SMB6.8AT3G datasheet.

SZP6SMB6.8AT3G Product details

Description

The SZP6SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

Features

Working Peak Reverse Voltage Range.
5.8 to 171 V (for Unidirectional), 9.4 to 70.1 V (for Bi-directional).
Standard Breakdown Voltage Range.
6.8 to 200 V (for Uni-directional) , 11 to 91 V (for Bidirectional).
Peak Power.
600 W @ 1 ms.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Maximum Clamp Voltage @ Peak Pulse Current.
Low Leakage < 5 µA Above 10 V.
Response Time is Typically < 1 ns.
