SZP6SMB8.2AT3G TVS Diodes

The SZP6SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low breakdown impedance and fast response time. The SZP6SMB series is supplied in the Littelfuse exclusive, cost-effective.

SZP6SMB8.2AT3G Features

* Working Peak Reverse Voltage Range

* 5.8 to 171 V (for Unidirectional), 9.4 to 70.1 V (for Bi-directional)

* Standard Breakdown Voltage Range

* 6.8 to 200 V (for Uni-directional) , 11 to 91 V (for Bidirectional)

* Peak Power

* 600 W @ 1 ms

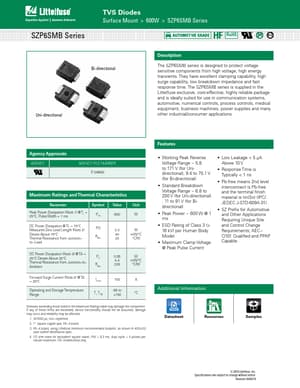

SZP6SMB8.2AT3G Datasheet (669.93 KB)
