SZSMF10AT1G, SZSMF5.0AT1G - TVS Diodes

Littelfuse

📥 Download Datasheet

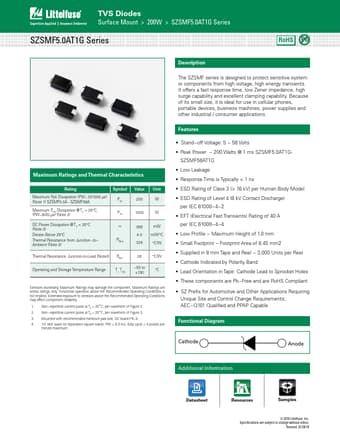

SZSMF10AT1G Datasheet Preview — This datasheet PDF includes multiple part numbers: SZSMF10AT1G, SZSMF5.0AT1G. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SZSMF10AT1G, SZSMF5.0AT1G
Manufacturer	Littelfuse ↗
File Size	764.91 KB
Description	TVS Diodes
Datasheet	SZSMF5.0AT1G-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SZSMF10AT1G, SZSMF5.0AT1G. Please refer to the document for exact specifications by model.

SZSMF10AT1G Product details

Description

The SZSMF series is designed to protect sensitive system or components from high voltage, high energy transients. 10/1000 µs) (Note 1)

Features

Stand.
off Voltage: 5.
58 Volts.
Peak Power.
200 Watts @ 1 ms SZSMF5.0AT1G- SZSMF58AT1G.
Low Leakage.
Response Time is Typically < 1 ns.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
ESD Rating of Level 4 (8 kV Contact Discharge) per IEC 61000.
4.
2.
EFT (Electrical Fast Transients) Rating of 40 A per IEC 61000.
4.
4.
Low Profile.
Maximum Height of 1.0 mm.
