TPSMB100CA TVS Diodes

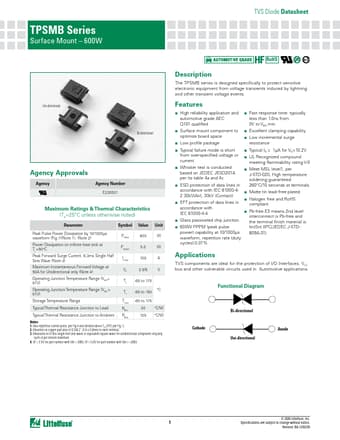

TPSMB Series Surface Mount 600W TVS Diode Datasheet Uni-directional Bi-directional Agency Approvals Agency Agency Number E230531 Maximum Ratings & Thermal Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 600 W Power Dissipation on infinite heat sink at TL=50OC PM(AV) 5.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 100 A Maximum .

TPSMB100CA Features

* High reliability application and automotive grade AEC Q101 qualified

* Surface mount component to optimize board space

* Low profile package

* Fast response time: typically less than 1.0ns from 0V to VBR min

* Excellent clamping capability

* Low incremental surge resistan

TPSMB100CA Datasheet (750.72 KB)
