TPSMB170CA, TPSMB7.5A Datasheet - Littelfuse

TPSMB170CA TVS Diodes

TPSMB Series Surface Mount 600W TVS Diode Datasheet Uni-directional Bi-directional Agency Approvals Agency Agency Number E230531 Maximum Ratings & Thermal Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 600 W Power Dissipation on infinite heat sink at TL=50OC PM(AV) 5.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 100 A Maximum .

TPSMB170CA Features

* High reliability application and automotive grade AEC Q101 qualified

* Surface mount component to optimize board space

* Low profile package

* Fast response time: typically less than 1.0ns from 0V to VBR min

* Excellent clamping capability

* Low incremental surge resistan

TPSMB7.5A-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: TPSMB170CA, TPSMB7.5A. Please refer to the document for exact specifications by model.

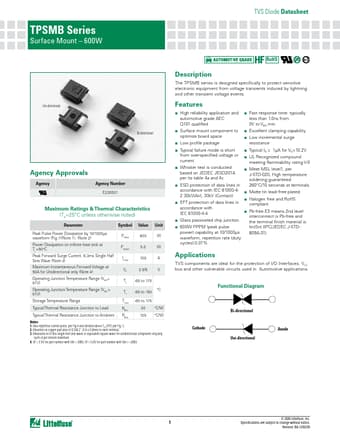

TPSMB170CA Datasheet Preview Page 2 TPSMB170CA Datasheet Preview Page 3

Datasheet Details

Part number:

TPSMB170CA, TPSMB7.5A

Manufacturer:

Littelfuse ↗

File Size:

750.72 KB

Description:

Tvs diodes.

Note:

This datasheet PDF includes multiple part numbers: TPSMB170CA, TPSMB7.5A.
Please refer to the document for exact specifications by model.
