TPSMC100A, TPSMC12A Datasheet - Littelfuse

TPSMC100A - TVS Diodes

TPSMC Series Surface Mount - 1500W TVS Diodes Datasheet RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings & Thermal Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000µs Waveform (Fig.2)(Note 1), (Note 2) PPPM 1500 W Power Dissipation on Infinite Heat Sink at TA=50OC PM(AV) 6.5 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 200

TPSMC100A Features

* High reliability application and

* Fast response time: typically automotive grade AEC-Q101 qualified less than 1.0ps from 0V to VBR min

* For surface mounted

* Excellent clamping capability applications to optimize board

* Low incremental surge space resistance

* L

TPSMC12A-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: TPSMC100A, TPSMC12A. Please refer to the document for exact specifications by model.

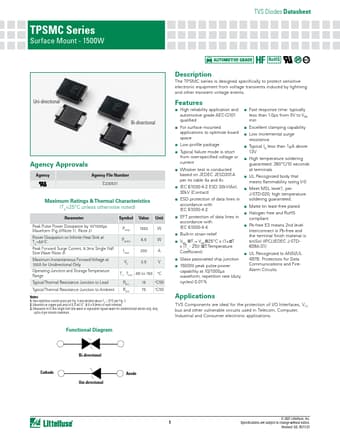

TPSMC100A Datasheet Preview Page 2 TPSMC100A Datasheet Preview Page 3

Datasheet Details

Part number:

TPSMC100A, TPSMC12A

Manufacturer:

Littelfuse ↗

File Size:

811.44 KB

Description:

Tvs diodes.

Note:

This datasheet PDF includes multiple part numbers: TPSMC100A, TPSMC12A.
Please refer to the document for exact specifications by model.
