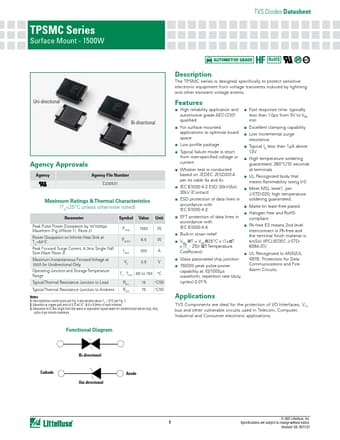

TPSMC Series Surface Mount - 1500W TVS Diodes Datasheet RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings & Thermal Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000µs Waveform (Fig.2)(Note 1), (Note 2) PPPM 1500 W Power Dissipation on Infinite Heat Sink at TA=50OC PM(AV) 6.5 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 200

TPSMC100CA Features

* Hi reliability application and automotive grade AEC-Q101 qualified

* Fast response time: typically less than 1.0ps from 0V to VBR min

* For surface mounted

* Excellent clamping capability applications to optimize board

* Low incremental surge space resistance

* Low
