V05P14P, V05E11P Metal-Oxide Varistors

V05P14P Description

Metal-Oxide Varistors (MOVs) Radial Leaded Varistors > LV UltraMOV® Varistor Series LV UltraMOV® Varistor Series RoHS Phenolic Coated Epoxy Coated.
The Littelfuse LV UltraMOV® Varistor Series provides an ideal circuit protection solution for DC voltage applications.

V05P14P Features

* Breakthrough in low
* High operating voltage varistor design temperature range provides high peak (up to up to 125ºC (phenolic 10KA) surge current rating coating option)
* Reduced footprint and
* 5 model sizes available: volume required for 5, 7, 10, 14, an

V05P14P Applications

* The maximum peak surge current rating can reach up to 10kA (8/20μs pulse) to protect against the damage from high peak surge current induced by indirect lightning strike interference, system switching transients, and abnormal fast transients from the power source. Available in five model sizes: 5mm

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V05P14P, V05E11P. Please refer to the document for exact specifications by model.

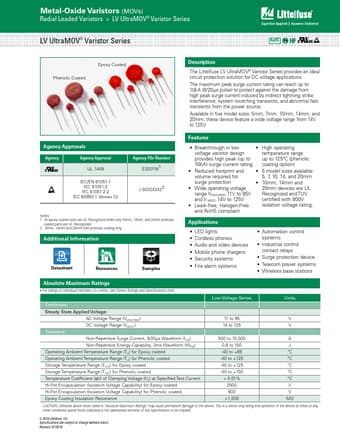

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V05P14P, V05E11P
Manufacturer
Littelfuse ↗
File Size
745.18 KB
Datasheet
V05E11P-Littelfuse.pdf
Description
Metal-Oxide Varistors
Note
This datasheet PDF includes multiple part numbers: V05P14P, V05E11P.
Please refer to the document for exact specifications by model.
