V1000LA160BP, V130 - Metal-Oxide Varistors

Littelfuse

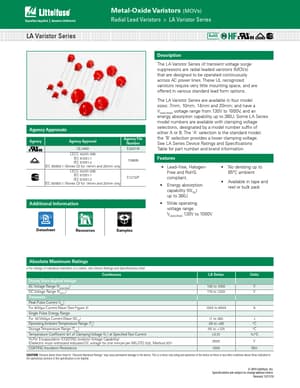

V1000LA160BP Datasheet Preview — This datasheet PDF includes multiple part numbers: V1000LA160BP, V130. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	V1000LA160BP, V130
Manufacturer	Littelfuse ↗
File Size	1.56 MB
Description	Metal-Oxide Varistors
Datasheet	V130-LA1P.pdf
Note	This datasheet PDF includes multiple part numbers: V1000LA160BP, V130. Please refer to the document for exact specifications by model.

V1000LA160BP Product details

Description

The LA Varistor Series of transient voltage surge suppressors are radial leaded varistors (MOVs) that are designed to be operated continuously across AC power lines.

Features

Lead.
free, HalogenFree and RoHS compliant.
Energy absorption capability (WTM) up to 360J.
Wide operating voltage range VM(AC)RMS 130V to 1000V.
No derating up to 85ºC ambient.
Available in tape and reel or bulk pack Absolute Maximum Ratings.
For ratings of individual members of a series, see Device Ratings and Specifications chart Continuous Steady State Applied Voltage: AC Voltage Range (VM(AC)RMS) DC Voltage Range (VM(DC)) Tran.
