V20P150AUTO Datasheet - Littelfuse

V20P150AUTO Metal-Oxide Varistors

The Littelfuse AUMOV® Varistor Series of low voltage, high surge current, radial leaded varistors provides an ideal circuit protection for load dump, jump start voltage transient conditions specifically for automotive applications. The maximum peak surge current rating is rated up to 5kA (8/20 μs pu.

AUMOV® Varistor Series Metal-Oxide Varistors (MOVs) Radial Leaded Varistors > AUMOV® Varistor Series RoHS Phenolic Coated Silicone Coated Agency Approvals Agency Agency File Number E320116 (only 14VAC to 42VAC for Epoxy coated) Note: All Phenolic coating parts and Silicone coating parts are qualified to AEC-Q200 (Table 10). Additional Information Datasheet Resources Samples Applications Body Electronics Systems Powertrain Systems Infotainment System.

V20P150AUTO Features

* a wide VDC voltage range from 16V to 825V. Features

* Breakthrough in low voltage varistor design provides high peak surge current rating

* Phenolic and Silicone coating meet the stringent quality requirements of AEC-Q200 (Table 10)

* Reduced footprint and volume required

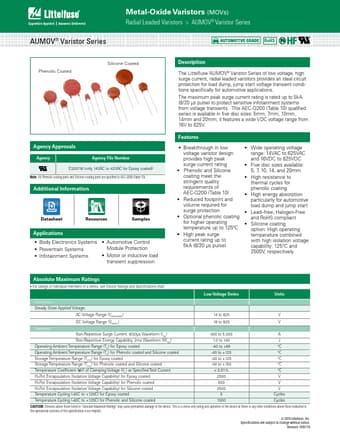

V20P150AUTO Datasheet (2.20 MB)
