V5.5MLN41206 Datasheet - Littelfuse

V5.5MLN41206 Multiline Transient Voltage Surge Suppressor

Next Previous Surface Mount Varistors Multiline Transient Voltage Surge Suppressor MLN SurgeArray™ Suppressor The MLN SurgeArray™ Suppressor is designed to help protect components from transient voltages that exist at the circuit board level. This device provides four independent suppressors in a single “1206” leadless chip in order to reduce part count and placement time as well as save space on printed circuit boards. SurgeArray™ devices are intended to suppress ESD, EFT and other transient.

V5.5MLN41206 Features

* Four Individual Devices in One 1206 Chip

* ESD Rated to IEC 61000-4-2 (Level 4)

* AC Characterized for Impedance and Capacitance

* Low Adjacent Channel Crosstalk, -55dB at 10MHz (Typ)

* Low Leakage (6nA at 5.5V, 30nA at 15V)

* Operating Voltage up to

V5.5MLN41206 Datasheet (170.10 KB)

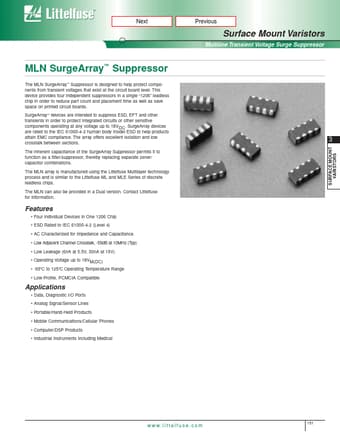

Preview of V5.5MLN41206 PDF
V5.5MLN41206 Datasheet Preview Page 2 V5.5MLN41206 Datasheet Preview Page 3

Datasheet Details

Part number:

V5.5MLN41206

Manufacturer:

Littelfuse ↗

File Size:

170.10 KB

Description:

Multiline transient voltage surge suppressor.
