V660LA50CP Datasheet - Littelfuse

Radial Leaded Varistors

V660LA50CP Features

* & Benefits

* Lead

* free, Halogen-Free and RoHS compliant

* High energy absorption capability WTM 40J to 530J (2ms)

* High pulse life rating

* High peak pulse current capability

* ITM 3500A to 10,000A (8/20µs)

* Wide operating voltage range VM(AC)RMS 130V to 1000V

V660LA50CP General Description

The C-III Varistor Series of Metal-Oxide Varistors (MOVs) are specifically designed for applications requiring high surge energy absorption ratings and superior multiple pulse absorption rating. This is achieved through a special dielectric material formulation which also results in higher repetitiv.

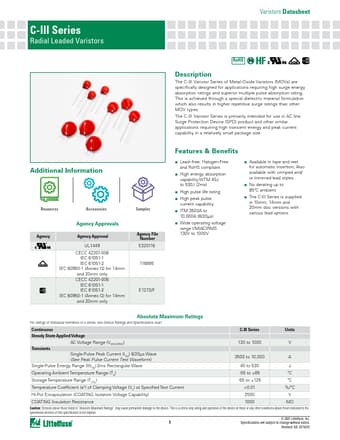

V660LA50CP Datasheet (877.04 KB)
