05D301K, 05D180K - Metal Oxide Varistors

The 05D301K by Lleiditech is a Metal Oxide Varistors. Below is the official datasheet preview.

Datasheet Details

Part number	05D301K, 05D180K
Manufacturer	Lleiditech
File Size	669.21 KB
Description	Metal Oxide Varistors
Datasheet	05D180K-leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: 05D301K, 05D180K. Please refer to the document for exact specifications by model.

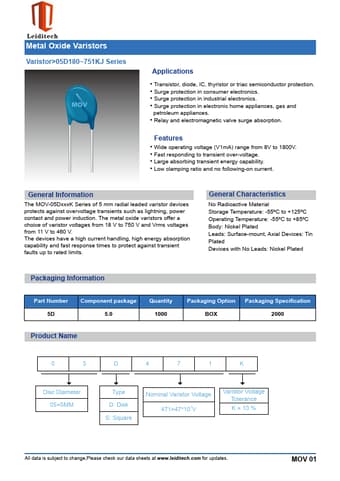

Additional preview pages of the 05D301K datasheet.

Wide operating voltage (V1mA) range from 8V to 1800V.
Fast responding to transient over-voltage.
Large absorbing transient energy capability.
Low clamping ratio and no following-on current. General Information The MOV-05DxxxK Series of 5 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 750 V and Vrms vol.
