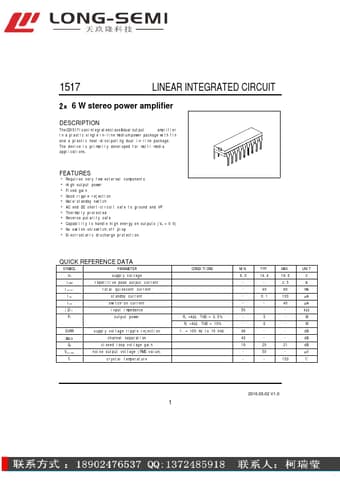

CD1517CP
DESCRIPTION
The CD1517 is an integrated class-B dual output amplifier in a plastic single in-line medium power package with fin and a plastic heat-dissipating dual in-line package.
The device is primarily developed for multi-media applications.
FEATURES
γ Requires very few external ponents γ High output power γ Fixed gain γ Good ripple rejection γ Mute/standby switch γ AC and DC short-circuit safe to ground and VP γ Thermally protected γ Reverse polarity safe γ Capability to handle high energy on outputs (VP = 0 V) γ No switch-on/switch-off plop γ Electrostatic discharge protection.
QUICK REFERENCE DATA
SYMBOL
PARAMETER
VP supply voltage
IORM repetitive peak output current
Iq(tot) total quiescent current
Isb standby current
Isw switch-on current
|ZI| input impedance
Po output power
SVRR
Įcs
Gv Vno(rms)
Tc supply voltage ripple rejection channel separation closed loop voltage gain noise output voltage (RMS value) crystal temperature
CONDITIONS
RL =4ȍ; THD =...
