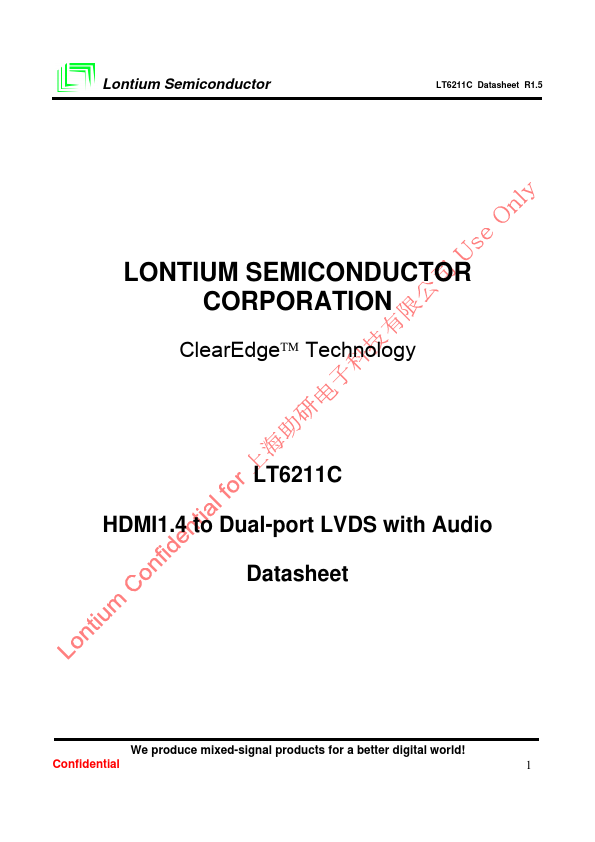

LT6211C - HDMI1.4 to Dual-port LVDS

Datasheet Details

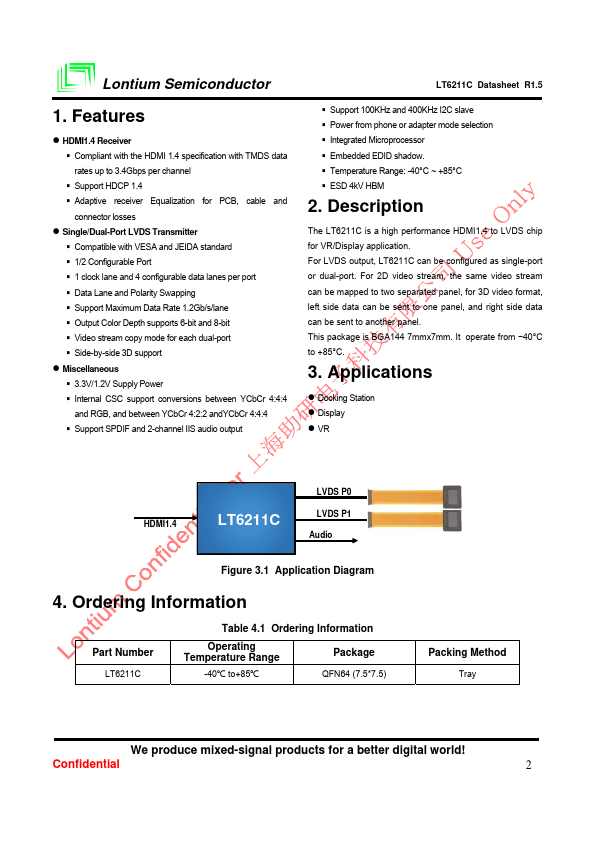

The LT6211C is a high performance HDMI1.4 to LVDS chip for VR/Display application. 40°C to +85°C. Docking Station Display VR HDMI1.4 LT6211C

HDMI1.4 Receiver.
Compliant with the HDMI 1.4 specification with TMDS data rates up to 3.4Gbps per channel.
Support HDCP 1.4.
Adaptive receiver Equalization for PCB, cable and connector losses.
Single/Dual-Port LVDS Transmitter.
Compatible with VESA and JEIDA standard.
1/2 Configurable Port.
1 clock lane and 4 configurable data lanes per port.
Data Lane and Polarity Swapping.
Support Maximum Data Rate 1.2Gb/s/lane.
Output Color Depth suppor.
