LPB1003 Datasheet - Lowpowersemi

LPB1003 One Cell Li-Ion Battery Protection IC

The LPB1003 product is a highly integrated solution for Li-Ion battery protection. It includes advanced power MOSFETs, precision voltage detection circuitry and delay circuitry for all the protection functions required in battery applications, including overcharge, overdischarge, overcurrent and loa.

LPB1003 Features

* Integrate Advanced Power MOSFET with Equivalent of 50mΩ RSS(ON)

* Two-step Overcurrent Detection: Overdischarge Current Load Short Circuiting

* Overcharge Current Protection

* 0V Battery Charging Function

* Delay Times are generated inside

* High-accuracy Voltage Detection

LPB1003 Datasheet (266.75 KB)

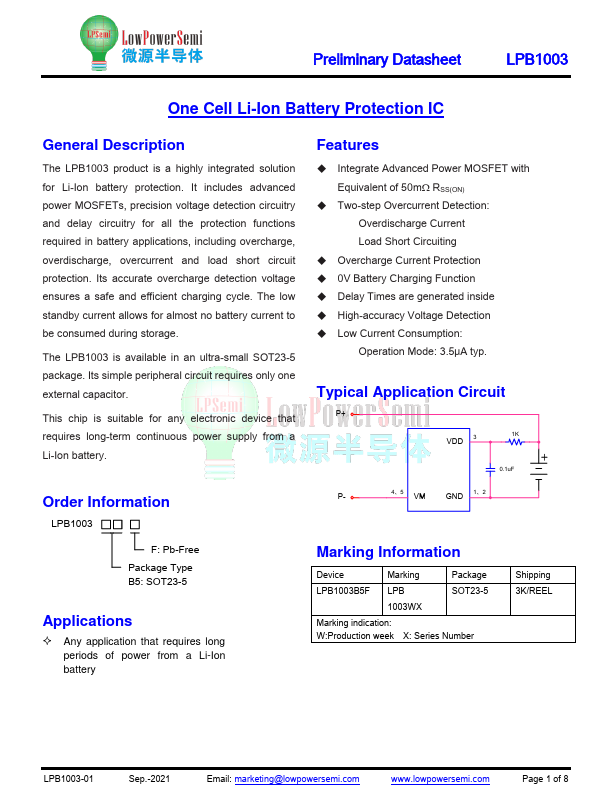

Preview of LPB1003 PDF

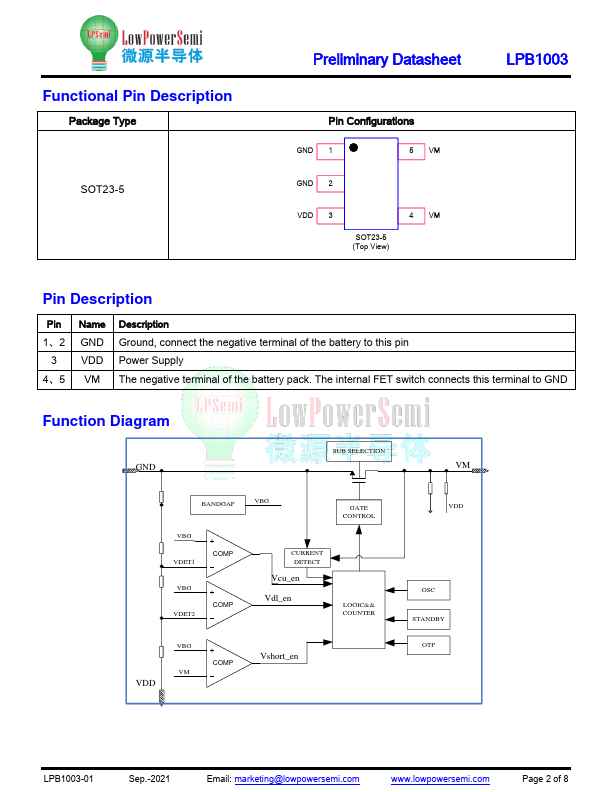

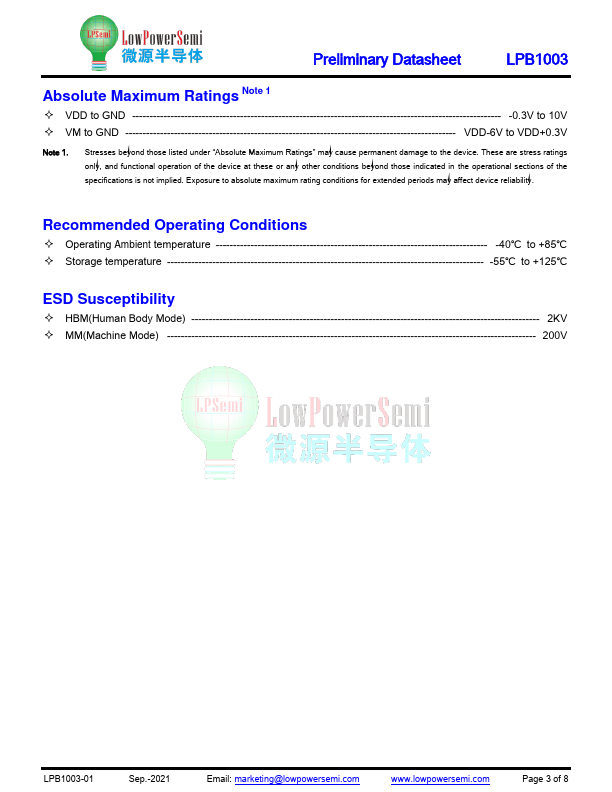

LPB1003 Datasheet Preview Page 2 LPB1003 Datasheet Preview Page 3

Datasheet Details

Part number:

LPB1003

Manufacturer:

Lowpowersemi

File Size:

266.75 KB

Description:

One cell li-ion battery protection ic.
