SF2060FC Datasheet, Rectifiers, Luguang Electronic Technology

SF2060FC Features

  • Rectifiers Low cos t Low leakage 15.0± 0.5 10.2± 0.2 4.5± 0.2 3.1+0.2 -0.1 3.3± 0.1 Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s ol

PDF File Details

Part number:

SF2060FC

Manufacturer:

Luguang Electronic Technology

File Size:

233.36kb

Download:

📄 Datasheet

Description:

(sf2010fc - sf2060fc) super fast rectifiers.

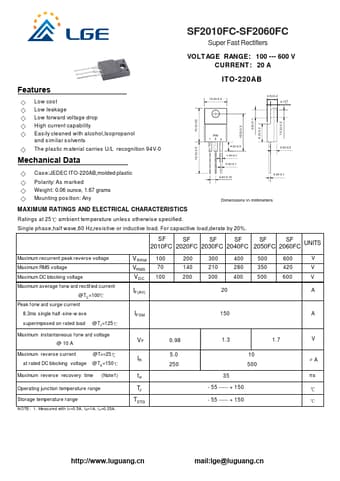

Datasheet Preview: SF2060FC 📥 Download PDF (233.36kb)
Page 2 of SF2060FC

TAGS

SF2060FC
SF2010FC
SF2060FC
Super
Fast
Rectifiers
Luguang Electronic Technology
