BR2506, BR25005 Datasheet - Luguang Electronic

BR2506 (BR25005 - BR2510) Silicon Bridge Rectifiers

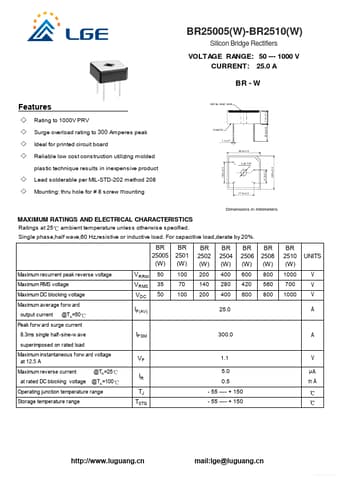

BR25005(W)-BR2510(W) Silicon Bridge Rectifiers VOLTAGE RANGE: 50 - 1000 V CURRENT: 25.0 A BR - W Rating to 1000V PRV Surge overload rating to 300 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded Õ¦ 18.0± 0.5 5.36 TYP. PLASTIC Õ¦ 1.1± 0.1 28.6± 0.3 Lead solderable per MIL-STD-202 method 208 Mounting: thru hole for # 8 screw mounting 17.6± 0.3 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambien.

BR2506 Features

* METAL HEAT SINK BR 2510 (W) 1000 700 1000 UNITS V V V A VRRM VRMS VDC IF(AV) 50 35 50 Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load Maximum instantaneous forw ard voltage at 12.5 A Maximum reverse current at rated DC blocking voltage @TA =25 @TA=100 IFSM

BR25005_LuguangElectronic.pdf

BR2506 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR2506, BR25005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BR2506, BR25005

Manufacturer:

Luguang Electronic

File Size:

167.84 KB

Description:

(br25005 - br2510) silicon bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: BR2506, BR25005.
Please refer to the document for exact specifications by model.
