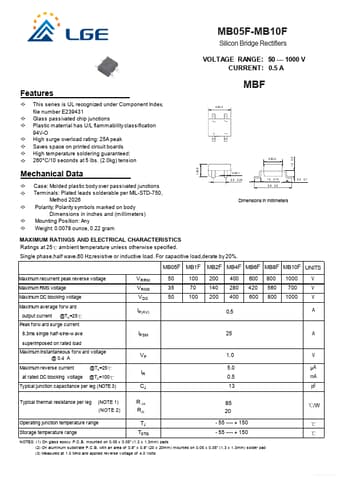

MB4F - Silicon Bridge Rectifiers

Luguang Electronic

Datasheet Details

This series is UL recognized under Component Index, file number E239431 Glass passivated chip junctions Plastic materrial has U/L flammability classification 94V-O High surge overload rating: 25A peak Saves space on printed circuit boards High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.0kg) tension 1. 4¡À0.2 4.8¡À0.2 MBF 3.8¡0 À .2 Mechanical Data Case: Molded plastic body over passivated junctions Terminals: Plated leads solderable per MIL-STD-750.
