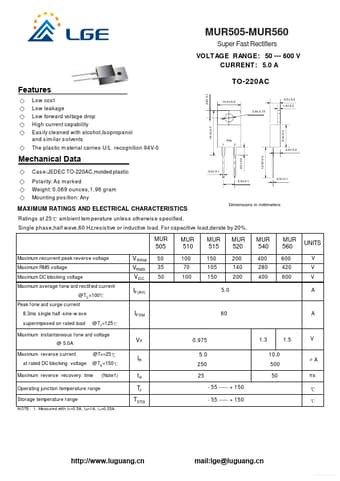

MUR520, MUR505 - Super Fast Rectifiers

Luguang Electronic

Datasheet Details

Part number	MUR520, MUR505
Manufacturer	Luguang Electronic
File Size	183.33 KB
Description	Super Fast Rectifiers
Datasheet	MUR505_LuguangElectronic.pdf
Note	This datasheet PDF includes multiple part numbers: MUR520, MUR505. Please refer to the document for exact specifications by model.

Low cos t Low leakage Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s olvents The plas tic m aterial carries U/L recognition 94V-0 TO-220A C 10.2± 0.2 ¦Õ 3.8± 0.15 4.5± 0.2 1.4± 0.2 19.0± 0.5 PIN 1 2 8.9± 0.2 2.6± 0.2 3.5± 0.3 13.8± 0.5 5.0± 0.1 0.5± 0.1 Mechanical Data Cas e:JEDEC TO-220AC,molded plastic Polarity: As marked Weight: 0.069 ounces,1.96 gram Mounting pos ition: Any 0.9± 0.1.
