SML-0404SIUPGUSB Datasheet, Leds, Lumex

SML-0404SIUPGUSB Features

  • Leds
  • Full color surface-mount RGB LED
  • 0404 Packaging: 1.0mm x 1.00mm x 0.25mm
  • Low current operation (30/40/20 mcd respectively for RGB @ 2mA)

PDF File Details

Part number:

SML-0404SIUPGUSB

Manufacturer:

Lumex

File Size:

1.04MB

Download:

📄 Datasheet

Description:

Smd rgb leds.

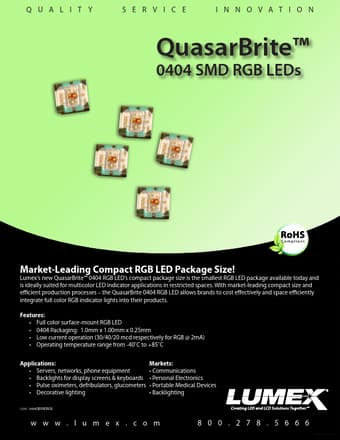

Datasheet Preview: SML-0404SIUPGUSB 📥 Download PDF (1.04MB)
Page 2 of SML-0404SIUPGUSB

SML-0404SIUPGUSB Application

  • Applications in restricted spaces. With market-leading compact size and efficient production processes
      – the QuasarBrite 0404 RGB LE
