IS31IO7325 - MULTI-FUNCTION I/O DRIVER

IS31IO7325 Description

IS31IO7325 MULTI-FUNCTION I/O DRIVER GENERAL .
The IS31IO7325 2-wire serial-interfaced peripheral features 16 I/O ports.

IS31IO7325 Features

* 16 I/O ports. Ports are divided into eight push pull I/Os and eight open-drain I/Os and transition detection. Any of the 16 I/O ports can be configured as an input or an output. All I/O ports configured as inputs are continuously monitored for state changes (transition detection). State changes are

IS31IO7325 Applications

* Cell phones
* Notebooks
* SAN/NAS
* Satellite radio
* Servers
* Automotive TYPICAL APPLICATION CIRCUIT Figure 1 Typical Application Circuit Note 1: VBattery must be equal to or greater than VDD. VDD> VBattery is forbidden. VDD should be turned off when system power off be

📥 Download Datasheet

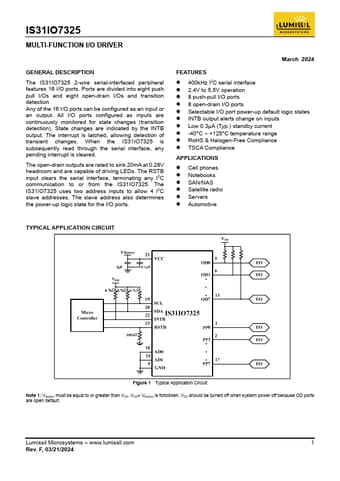

Preview of IS31IO7325 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS31IO7325
Manufacturer
Lumissil
File Size
475.82 KB
Datasheet
IS31IO7325-Lumissil.pdf
Description
MULTI-FUNCTION I/O DRIVER
