IS31SE5120A - 24-CH PROGRAMMABLE CAPACITIVE TOUCH SENSOR

Lumissil

📥 Download Datasheet

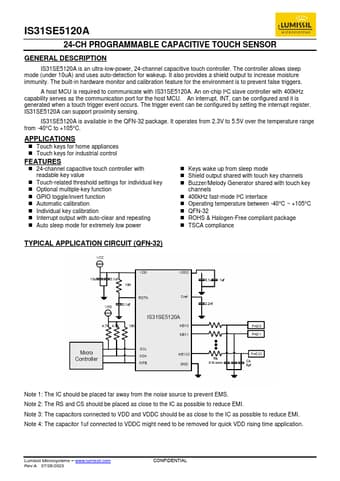

IS31SE5120A Datasheet Preview — Preview of IS31SE5120A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IS31SE5120A
Manufacturer	Lumissil
File Size	754.90 KB
Description	24-CH PROGRAMMABLE CAPACITIVE TOUCH SENSOR
Datasheet	IS31SE5120A-Lumissil.pdf

IS31SE5120A Product details

Description

IS31SE5120A is an ultra-low-power, 24-channel capacitive touch controller.

Features

24-channel capacitive touch controller with readable key value.
Touch-related threshold settings for individual key.
Optional multiple-key function.
GPIO toggle/invert function.
Automatic calibration.
Individual key calibration.
Interrupt output with auto-clear and repeating.
Auto sleep mode for extremely low power.
Keys wake up from sleep mode.
Shield output shared with touch key channels.
Buzzer/Melody Generator shared with touch key cha.
