IS32LT3128A

TRIPLE CHANNEL LINEAR LED DRIVER

IS32LT3128A Features

* Operating voltage range, 5V to 42V

* Dual channel current sources - Individual programmable current via a single external resistor - Configurable from 20mA to 150mA

* Single channel 30mA (Max.) current source for switch illumination

* EN input supports either moment

IS32LT3128A General Description

The IS32LT3128A is a programmable triple channel linear current regulator; two channels of up to 150mA each for LED lighting and a single channel of up to 30mA for illuminating switches. The device operates as a fully configurable theatrical dimming LED driver; no microcontroller is required. Exter.

IS32LT3128A Datasheet (965.42 KB)

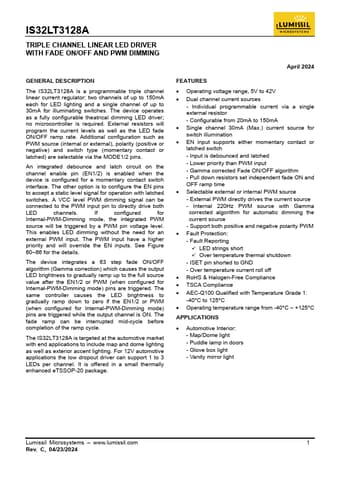

Preview of IS32LT3128A PDF

Datasheet Details

Part number:

IS32LT3128A

Manufacturer:

Lumissil

File Size:

965.42 KB

Description:

Triple channel linear led driver.
