IS32PM3420A - SYNCHRONOUS STEP-DOWN VOLTAGE REGULATOR

Lumissil

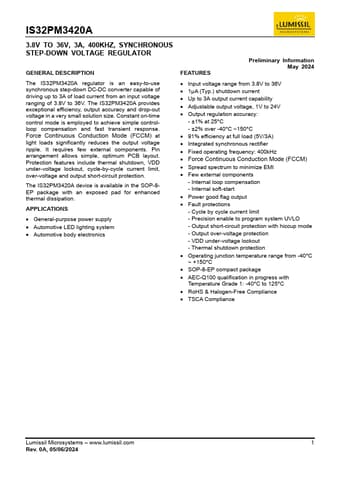

IS32PM3420A Datasheet Preview — Preview of IS32PM3420A PDF

Datasheet Details

Part number	IS32PM3420A
Manufacturer	Lumissil
File Size	415.43 KB
Description	SYNCHRONOUS STEP-DOWN VOLTAGE REGULATOR
Datasheet	IS32PM3420A-Lumissil.pdf

IS32PM3420A Product details

Description

The IS32PM3420A regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 3A of load current from an input voltage ranging of 3.8V to 36V.

Features

include thermal shutdown, VDD under-voltage lockout, cycle-by-cycle current limit, over-voltage and output short-circuit protection. The IS32PM3420A device is available in the SOP-8EP package with an exposed pad for enhanced thermal dissipation.
