RTS511B - Fan Controller

This page provides the datasheet information for the RTS511B, a member of the RTS511B_M Fan Controller family.

Datasheet Summary

Description

Similar to RTS510B, the fan controller RTS511B, embedded with a remote-control receiver, is a CMOS LSI designed for fan controller applications.

It is a remote control system with three wind modes, three wind grades and six timing functions achieved by combining RTS511B with RTS715-2.

Features

  • - Wide operating voltage range: 3.5V - 5.5V Use 32768Hz quartz crystal as time base Three wind modes: - Constant-speed wind, Rhythmical wind & Sleep wind Three wind grades for each wind mode: - Soft, Medium & Strong wind Two types of selectable timing function - Summable, non-summable Special protections preventing key-in mistakes Power-ON Reset One key controlling “Fan Swinging” and “Lighting” functions Low power consumption Combined with RTS715-2, which functions an infrared remote controller.

📥 Download Datasheet

Datasheet preview – RTS511B

Datasheet Details

Part number RTS511B
Manufacturer M-Square
File Size 361.93 KB
Description Fan Controller
Datasheet download datasheet RTS511B Datasheet
Additional preview pages of the RTS511B datasheet.

📁 Similar Datasheet

  • RTS5105 - USB 2.0 Card Reader Controller (Realtek)
  • RTS5138 - One-LUN USB 2.0 Card Reader Controller (Realtek)
  • RTS5169 - USB 2.0 SD/MMC/MS/MSPRO/xD-Picture & Smart Card / SIM Card Reader (Realtek)
  • RTS5306E - USB 3.0 SD/MMC Card Reader Controller (Realtek)
  • RTS5401 - USB 3.0 Super-Speed HUB Controller (Realtek)
  • RTS5411 - USB 3.0 Super-Speed HUB Controller (Realtek)
  • RTS5411E - USB 3.1 Super-Speed HUB Controller (Realtek)
  • RTS-0505 - ECONOLINE - DC/DC - CONVERTER (Recom International Power)
  • RTS-0509 - ECONOLINE - DC/DC - CONVERTER (Recom International Power)
  • RTS-0512 - ECONOLINE - DC/DC - CONVERTER (Recom International Power)
Other Datasheets by M-Square
  • RTS715-3 - Infrared/R.F Transmitter
  • RTS903 - DUAL-TONE MELODY GENERATOR

Full PDF Text Transcription

Click to expand full text

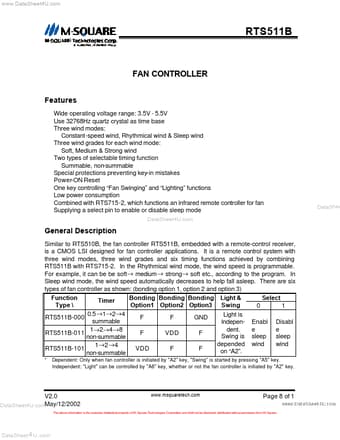

www.DataSheet4U.com RTS511B FAN CONTROLLER Features - Wide operating voltage range: 3.5V - 5.5V Use 32768Hz quartz crystal as time base Three wind modes: - Constant-speed wind, Rhythmical wind & Sleep wind Three wind grades for each wind mode: - Soft, Medium & Strong wind Two types of selectable timing function - Summable, non-summable Special protections preventing key-in mistakes Power-ON Reset One key controlling “Fan Swinging” and “Lighting” functions Low power consumption Combined with RTS715-2, which functions an infrared remote controller for fan Supplying a select pin to enable or disable sleep mode DataSheet4U.
