D4105DB TRANSFORMER

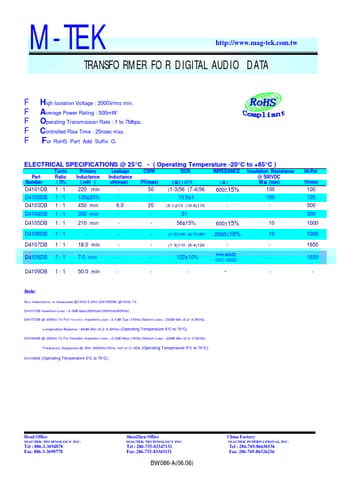

M-TEK http://www.mag-tek.com.tw TRANSFORMER FOR DIGITAL AUDIO DATA F High Isolation Voltage : 2000Vrms min. F Average Power Rating : 500mW. F Operating Transmission Rate : 1 to 7Mbps. F Controlled Rise Time : 25nsec max. F For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C - ( Operating Temperature -20°C to +85°C ) Part Number Turns Ratio ± 5% Primary Inductance ( mH ) Leakage Inductance uH(max) CWW PF(max) DCR (Ω) ±15% IMPEDANCE (Ω) Insulation Resistance @ 500VDC MΩ (min) .

D4101DB-M-TEK.pdf

This datasheet PDF includes multiple part numbers: D4105DB, D4101DB-M. Please refer to the document for exact specifications by model.
D4105DB Datasheet Preview Page 2 D4105DB Datasheet Preview Page 3

Datasheet Details

Part number:

D4105DB, D4101DB-M

Manufacturer:

M-TEK

File Size:

91.34 KB

Description:

Transformer.

Note:

This datasheet PDF includes multiple part numbers: D4105DB, D4101DB-M.
Please refer to the document for exact specifications by model.
