IT7833 - 5V/3A High Efficiency Step-Down DC/DC Converter

Description

The IT7833 is a low-input voltage and high-output current synchronous-buck PWM converter and integrates with all required active components.

Its’ operating input voltage ranges from 2.7V to 6V and output voltage ranges from VIN down to 0.8V.

Features

  • 2.7V to 6V Input Voltage Range 3A Output Current Typical Quiescent Current: 0.65mA 300kHz to 1.4MHz Adjustable Frequency Operation 0.8V to VIN Adjustable Output Voltage 100% Duty Cycle for Lowest Dropout 0% Duty Cycle Enable Internal Pull-High External Compensation Internal Soft-Start Thermal Shutdown Current-Limit and Short-Circuit Protection SOP 8L-EP Package RoHS Compliant (100% Green Available).

📥 Download Datasheet

Datasheet Details

Part number IT7833
Manufacturer M3TEK
File Size 36.41 KB
Description 5V/3A High Efficiency Step-Down DC/DC Converter
Datasheet download datasheet IT7833 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IT7001M Programmable 8-Bit Binary Counter ITE Tech
IT7001N Programmable 8-Bit Binary Counter ITE Tech
IT7012C LCD Display Driver Integrated Technology
IT7012H LCD Display Driver Integrated Technology
IT7020C Durable High-Voltage 240-Channel Common Driver Integrated Technology

Other Datasheets by M3TEK

Part Number Description
IT7831 5V/1A High Efficiency Synchronous Step-Down DC/DC Converter
IT7832 5V/2A High Efficiency Step-Down DC/DC Converter
IT7801 5V/1A High Efficiency Step-Down DC/DC Converter
IT7802 5V/2A High Efficiency Step-Down DC/DC Converter
IT7803 5V/3A High Efficiency Step-Down DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

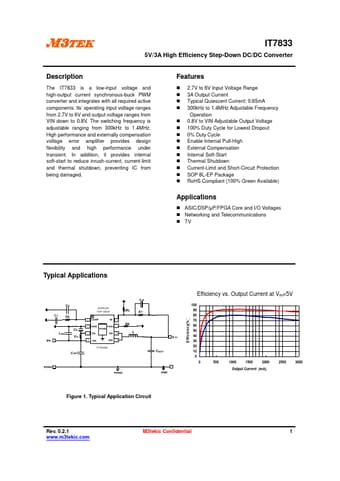

M3TEK IT7833 5V/3A High Efficiency Step-Down DC/DC Converter Description The IT7833 is a low-input voltage and high-output current synchronous-buck PWM converter and integrates with all required active components. Its’ operating input voltage ranges from 2.7V to 6V and output voltage ranges from VIN down to 0.8V. The switching frequency is adjustable ranging from 300kHz to 1.4MHz. High performance and externally compensation voltage error amplifier provides design flexibility and high performance under transient. In addition, it provides internal soft-start to reduce inrush-current, current-limit and thermal shutdown, preventing IC from being damaged. Features 2.7V to 6V Input Voltage Range 3A Output Current Typical Quiescent Current: 0.65mA 300kHz to 1.
