MT5086 Datasheet - M3TEK

Quiescent Current Synchronous Boost Controller

MT5086 Features

* a precision 1.224V reference and a power good output indicator. The MODE/SYNC pin selects between pulse skipping mode and force PWM mode at light loads. Features 2.7V to 30V (40V Abs Max) Input Range 30V Maximum Output Voltage ±1.5% 1.224V Reference Voltage Low Quiescent Current 55µA Shutdown Suppl

MT5086 General Description

The MT5086 is a high efficiency synchronous Boost PWM controller that drives all N-channel power MOSFETs to step up output voltage up to 30V. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, allowing the MT5086 to be used in high power Step Up appl.

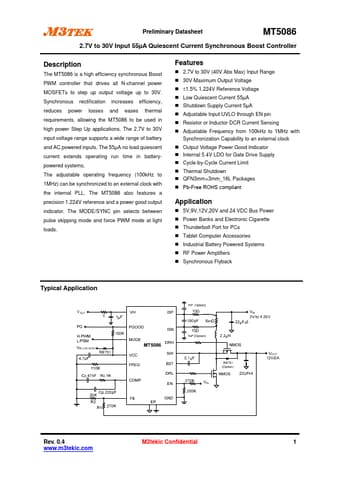

MT5086 Datasheet (321.22 KB)

MT5086 Datasheet Preview — Preview of MT5086 PDF

Datasheet Details

Part number:

MT5086

Manufacturer:

M3TEK

File Size:

321.22 KB

Description:

Quiescent current synchronous boost controller.
