AM-180

Cascadable Thin Film Amplifier

AM-180 Features

* +14 dBm Typical 1 dB Compression

* 5 dB Typical Noise Figure

* 1.4:1 Typical VSWR Description M/A-COM’s AM-180 is a feedback amplifier with high intercept and compression points. This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise should

AM-180 General Description

M/A-COM’s AM-180 is a feedback amplifier with high intercept and compression points. This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise should be minimized. The ground plane on the PC board should be configured to remove heat from under the package. .

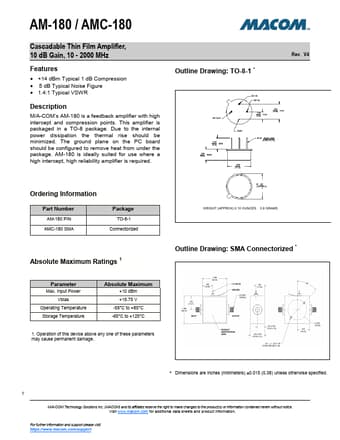

AM-180 Datasheet (585.72 KB)

Preview of AM-180 PDF

Datasheet Details

Part number:

AM-180

Manufacturer:

MA-COM

File Size:

585.72 KB

Description:

Cascadable thin film amplifier.
