Part number:
AM50-0003
Manufacturer:
MA-COM
File Size:
202.06 KB
Description:
High dynamic range low noise amplifier.

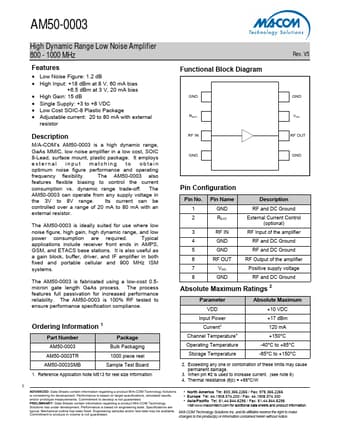

AM50-0003 Datasheet (202.06 KB)
* Low Noise Figure: 1.2 dB
* High Input: +18 dBm at 8 V, 60 mA bias +6.5 dBm at 3 V, 20 mA bias
* High Gain: 15 dB
* Single Supply: +3 to +8 VDC
* Low Cost SOIC-8 Plastic Package
* Adjustable current: 20 to 80 mA with external resistor Functional Bloc
AM50-0003 Datasheet (202.06 KB)
AM50-0003
MA-COM
202.06 KB
High dynamic range low noise amplifier.
