Part number:
AM50-0004
Manufacturer:
MA-COM
File Size:
138.24 KB
Description:
High dynamic range low noise amplifier.

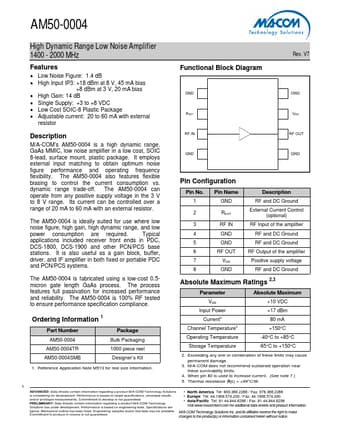

AM50-0004 Datasheet (138.24 KB)
* Low Noise Figure: 1.4 dB
* High Input IP3: +18 dBm at 8 V, 45 mA bias +8 dBm at 3 V, 20 mA bias
* High Gain: 14 dB
* Single Supply: +3 to +8 VDC
* Low Cost SOIC-8 Plastic Package
* Adjustable current: 20 to 60 mA with external resistor Functional Bl
AM50-0004 Datasheet (138.24 KB)
AM50-0004
MA-COM
138.24 KB
High dynamic range low noise amplifier.
