CD5287

Current Regulator Diode Chips

MA-COM

CD5287 Features

* All Junctions Completely Protected with Silicon Dioxide

* Constant Current over Wide Voltage Range

* Electrically Equivalent to 1N5283 - 1N5314 & 1N7048 - 1N7055 Die Description These 0.5 W zener diodes are electrically equivalent to the 1N5283 - 1N5314, 1N7048 - 1N7055 series diodes

CD5287 General Description

These 0.5 W zener diodes are electrically equivalent to the 1N5283 - 1N5314, 1N7048 - 1N7055 series diodes. They are compatible with all wire bonding and die attach techniques with the exception of solder reflow. These diodes are available in JANHC and JANKC per MIL-PRF-19500/463. Electrical Speci.

CD5287 Datasheet (628.90 KB)

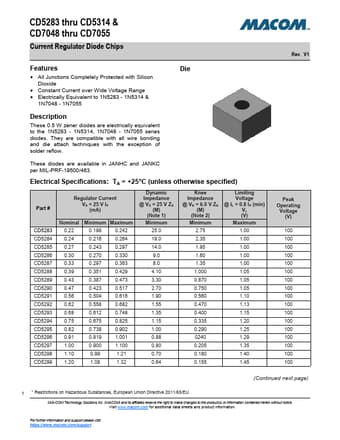

CD5287 Datasheet Preview — Preview of CD5287 PDF

Datasheet Details

Part number:

CD5287

Manufacturer:

MA-COM

File Size:

628.90 KB

Description:

Current regulator diode chips.
