MBC50-20B12

MNOS Series Capacitor Beam Leads

MBC50-20B12 Features

* Low Leakage Current

* Low Insertion Loss

* Excellent Long Term Stability Description The MBC50-x Series capacitors utilize a silicon nitride dielectric over a thermally grown silicon dioxide base. The resultant composite dielectric exhibits low leakage current and insertion loss with e

MBC50-20B12 General Description

The MBC50-x Series capacitors utilize a silicon nitride dielectric over a thermally grown silicon dioxide base. The resultant composite dielectric exhibits low leakage current and insertion loss with excellent long-term stability. The temperature coefficient of capacitance is typically +55 ppm / ºC..

MBC50-20B12 Datasheet (486.84 KB)

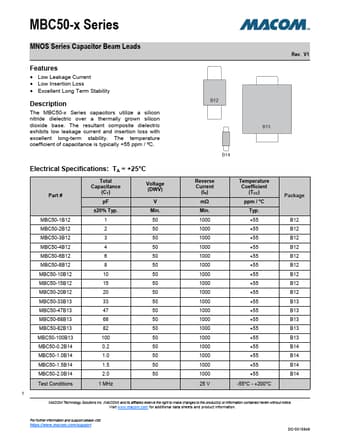

Preview of MBC50-20B12 PDF

Datasheet Details

Part number:

MBC50-20B12

Manufacturer:

MA-COM

File Size:

486.84 KB

Description:

Mnos series capacitor beam leads.
