MBC50-47B13

MNOS Series Capacitor Beam Leads

MBC50-47B13 Features

* Low Leakage Current

* Low Insertion Loss

* Excellent Long Term Stability Description The MBC50-x Series capacitors utilize a silicon nitride dielectric over a thermally grown silicon dioxide base. The resultant composite dielectric exhibits low leakage current and insertion loss with e

MBC50-47B13 General Description

The MBC50-x Series capacitors utilize a silicon nitride dielectric over a thermally grown silicon dioxide base. The resultant composite dielectric exhibits low leakage current and insertion loss with excellent long-term stability. The temperature coefficient of capacitance is typically +55 ppm / ºC..

MBC50-47B13 Datasheet (486.84 KB)

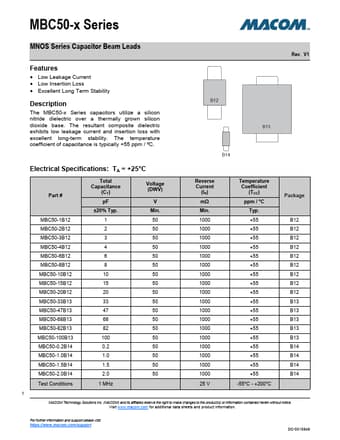

Preview of MBC50-47B13 PDF

Datasheet Details

Part number:

MBC50-47B13

Manufacturer:

MA-COM

File Size:

486.84 KB

Description:

Mnos series capacitor beam leads.
