MGV075-12, MGV075-08-MA - GaAs Hyperabrupt Varactor Diodes

MA-COM

The MGV075-12 by MA-COM is a GaAs Hyperabrupt Varactor Diodes. Below is the official datasheet preview.

📥 Download Datasheet

MGV075-12 GaAs Hyperabrupt Varactor Diodes by MA-COM - Datasheet Preview — Official preview page of the MGV075-12 GaAs Hyperabrupt Varactor Diodes datasheet (MA-COM).

Datasheet Details

Part number	MGV075-12, MGV075-08-MA
Manufacturer	MA-COM
File Size	440.55 KB
Description	GaAs Hyperabrupt Varactor Diodes
Datasheet	MGV075-08-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: MGV075-12, MGV075-08-MA. Please refer to the document for exact specifications by model.

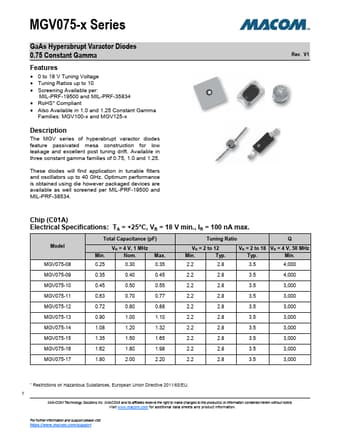

Additional preview pages of the MGV075-12 datasheet.

MGV075-12 Product details

Description

The MGV series of hyperabrupt varactor diodes feature passivated mesa construction for low leakage and excellent post tuning drift.

Features

0 to 18 V Tuning Voltage.
Tuning Ratios up to 10.
Screening Available per: MIL-PRF-19500 and MIL-PRF-35834.
RoHS.
Compliant.
Also Available in 1.0 and 1.25 Constant Gamma Families: MGV100-x and MGV125-x.
