V939, V933-MA - Silicon Abrupt Tuning Varactors

MA-COM

📥 Download Datasheet

V939 Datasheet Preview — This datasheet PDF includes multiple part numbers: V939, V933-MA. Please refer to the document for exact specifications by model.

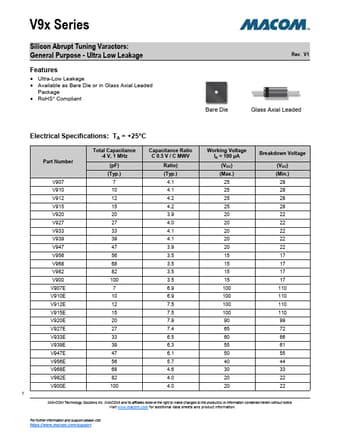

datasheet Preview Page 2

Datasheet Details

Part number	V939, V933-MA
Manufacturer	MA-COM
File Size	413.61 KB
Description	Silicon Abrupt Tuning Varactors
Datasheet	V933-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: V939, V933-MA. Please refer to the document for exact specifications by model.

V939 Product details

Features

Ultra-Low Leakage.
Available as Bare Die or in Glass Axial Leaded Package.
RoHS.
Compliant Rev. V1 Bare Die Glass Axial Leaded Electrical Specifications: TA = +25°C Part Number Total Capacitance -4 V, 1 MHz (pF) Capacitance Ratio C 0.5 V / C MWV Ratio) Working Voltage IR = 100 µA (VDC) Breakdown Voltage (VDC) (Typ. ) (Typ. ) (Max. ) (Min. ) V907 7 4.1 25 28 V910 10 4.1 25 28 V912 12 4.2 25 28 V915 15 4.2 25 28 V920 20 3.9 20 22 V927 27 4.0.
