DS-112 Datasheet - MACOM

Four-Way Power Divider

DS-112 Features

* Low Loss: 0.6 dB Typical

* High Isolation: 30 dB Typical

* Low VSWR: 1.2:1 Typical

* Impedance: 50 Ohms Nominal

* Maximum Power Rating or Input Power: 1W Max.

* Internal Load Dissipation: Ds-112 -0.05 W Max. DS-312

* 0.25 Watts Max.

* MIL-STD-202 Screening Availa

DS-112 General Description

A Power Divider is ideally a lossless reciprocal device which can also perform vector summation of two or more signals and thus is sometimes called a power combiner or summer. FP-5 (DS-112) C-14 (DS-312) Rev. V6 Pin Configuration (DS-112) Pin No. 1 2 3 4 5 6 7 Function GND None None Input GND .

DS-112 Datasheet (504.93 KB)

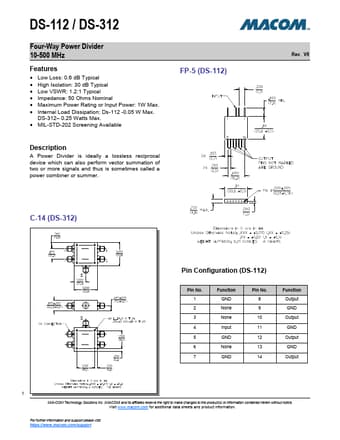

Preview of DS-112 PDF

Datasheet Details

Part number:

DS-112

Manufacturer:

MACOM

File Size:

504.93 KB

Description:

Four-way power divider.
