FR12-0009 - Single Junction Drop-In Isolator

Product Overview

MACOM

Datasheet Details

Part number	FR12-0009
Manufacturer	MACOM
File Size	32.78 KB
Description	Single Junction Drop-In Isolator
Datasheet	FR12-0009 Datasheet
Note	This datasheet PDF includes multiple part numbers: FR12-0009, FR12-0001. Please refer to the document for exact specifications by model.

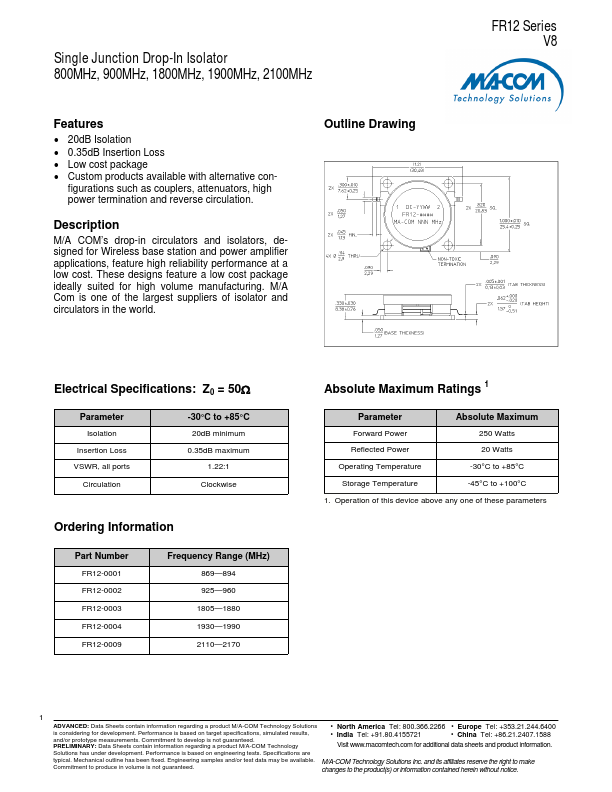

Additional preview pages of the FR12-0009 datasheet.

Product details

Description

M/A COM’s drop-in circulators and isolators, designed for Wireless base station and power amplifier applications, feature high reliability performance at a low cost.

Features

20dB Isolation.
0.35dB Insertion Loss.
Low cost package.
Custom products available with alternative con- figurations such as couplers, attenuators, high power termination and reverse circulation.
