MA4M2020 - MNS Microwave Chip Capacitors

MACOM

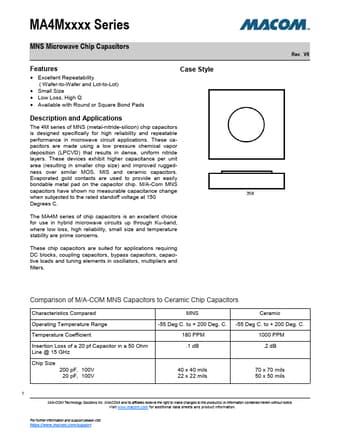

MA4M2020 Datasheet Preview — Preview of MA4M2020 PDF

Datasheet Details

Part number	MA4M2020
Manufacturer	MACOM
File Size	480.42 KB
Description	MNS Microwave Chip Capacitors
Datasheet	MA4M2020-MACOM.pdf

MA4M2020 Product details

Description

and Applications The 4M series of MNS (metal-nitride-silicon) chip capacitors is designed specifically for high reliability and repeatable performance in microwave circuit applications.These capacitors are made using a low pressure chemical vapor deposition (LPCVD) that results in dense, uniform nitride layers.These devices exhibit higher capacitance per unit area (resulting in smaller chip size) and improved ruggedness over similar MOS, MIS and ceramic capacitors.Evaporated gold contacts are

Features

Excellent Repeatability ( Wafer-to-Wafer and Lot-to-Lot).
Small Size.
Low Loss, High Q.
Available with Round or Square Bond Pads Case Style.
