MKVC-1A0110 - 1000V Si High Voltage Capacitors

This page provides the datasheet information for the MKVC-1A0110, a member of the MKVC-1A03R6 1000V Si High Voltage Capacitors family.

Description

The MACOM KV CAPS™ Si high voltage capacitors feature very high working voltage ratings, very low loss and excellent stability by virtue of their novel internal construction and very high quality dielectric layers.

Features

  • High Working Voltage: 1000 V.
  • Wide Range of Capacitance: 3.6 - 1300 pF.
  • Excellent Stability.
  • Available in plastic SMT or ceramic hermetic packages.
  • RoHS.
  • Compliant.

📥 Download Datasheet

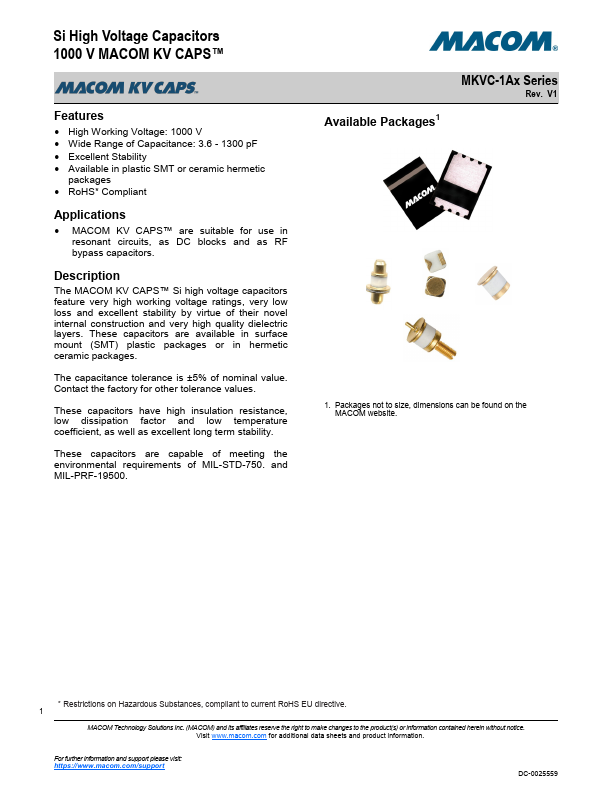

Datasheet preview – MKVC-1A0110

Datasheet Details

Part number MKVC-1A0110
Manufacturer MACOM
File Size 1.21 MB
Description 1000V Si High Voltage Capacitors
Datasheet download datasheet MKVC-1A0110 Datasheet

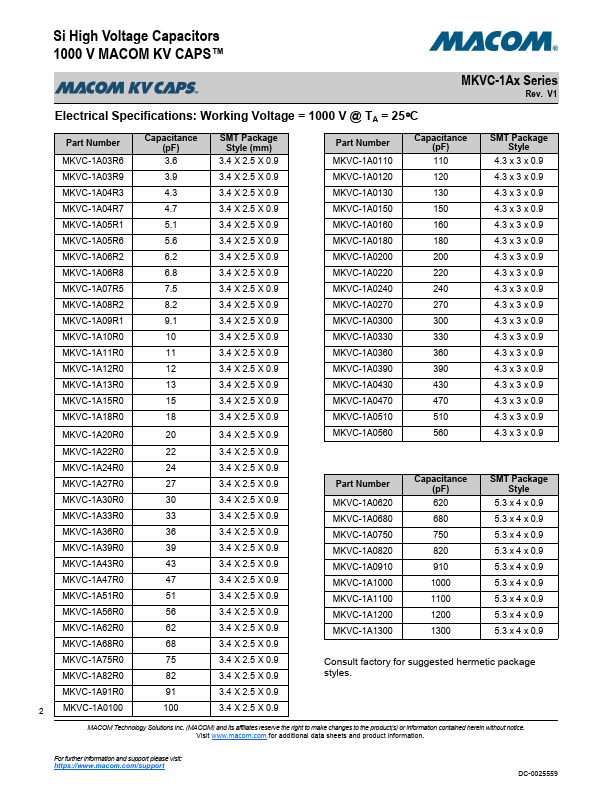

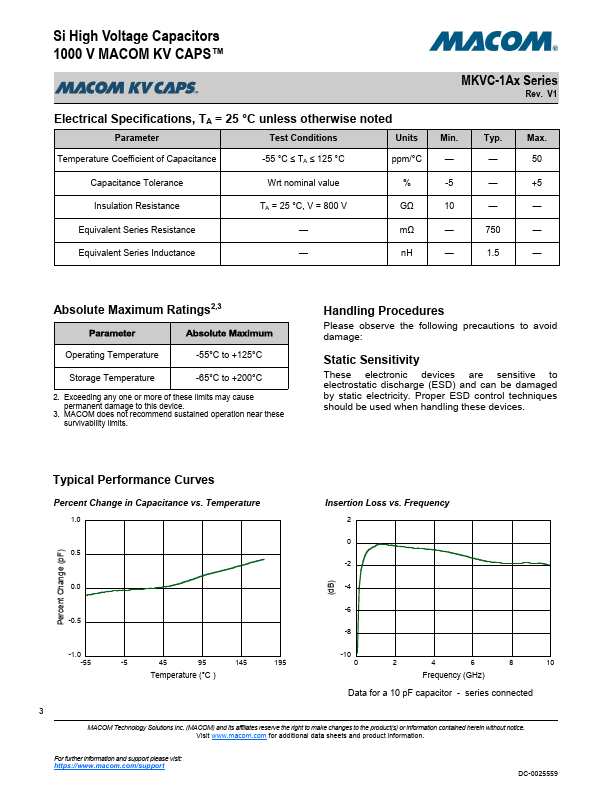

Additional preview pages of the MKVC-1A0110 datasheet.

📁 Similar Datasheet

Other Datasheets by MACOM

Full PDF Text Transcription

Click to expand full text
Si High Voltage Capacitors 1000 V MACOM KV CAPS™ Features • High Working Voltage: 1000 V • Wide Range of Capacitance: 3.6 - 1300 pF • Excellent Stability • Available in plastic SMT or ceramic hermetic packages • RoHS* Compliant Applications • MACOM KV CAPS™ are suitable for use in resonant circuits, as DC blocks and as RF bypass capacitors. Description The MACOM KV CAPS™ Si high voltage capacitors feature very high working voltage ratings, very low loss and excellent stability by virtue of their novel internal construction and very high quality dielectric layers. These capacitors are available in surface mount (SMT) plastic packages or in hermetic ceramic packages. The capacitance tolerance is ±5% of nominal value. Contact the factory for other tolerance values.
