PTGA090304MD

Wideband LDMOS Two-stage Integrated Power Amplifier

PTGA090304MD Features

* On-chip matching for broadband operation

* Designed for ultra wideband performance

* Typical CW performance, 960 MHz, 50 V, combined outputs - Output power at P1dB = 45 dBm - Output power at P3dB = 45.9 dBm - Linear Gain at P1dB = 31 dB - Efficiency at P1dB = 48.1%

PTGA090304MD General Description

The PTGA090304MD is a wideband, two-stage, LDMOS integrated power amplifier. Fabricated with 50 V LDMOS process, it incorporates internal matching for operation from 575 MHz to 960 MHz, and dual independent outputs of 15 W each. It is available in a 14-lead plastic overmold package with gull wing le.

PTGA090304MD Datasheet (837.82 KB)

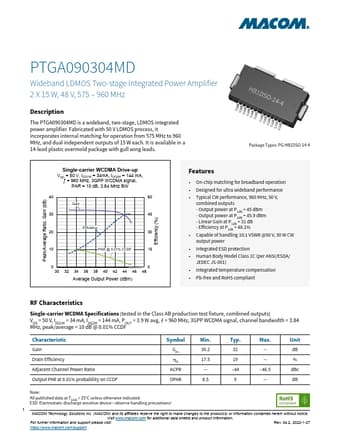

Preview of PTGA090304MD PDF
